Expanded Metals-Metallic Coil Mesh, Metal Lath Mesh, Expanded Mesh Corner Beads-Galvanized, Aluminum and SS304

Expanded metal is a sheet metal stretched to form a mesh-like pattern, typically made from steel, aluminum, stainless steel, and other alloys. Expanded metal mesh is available in various thicknesses, strand widths, and opening sizes to suit different construction needs.

Types of expanded mesh products including: Metallic Coil Mesh, Expanded Metal Lath, Expanded Mesh Corner Beads.

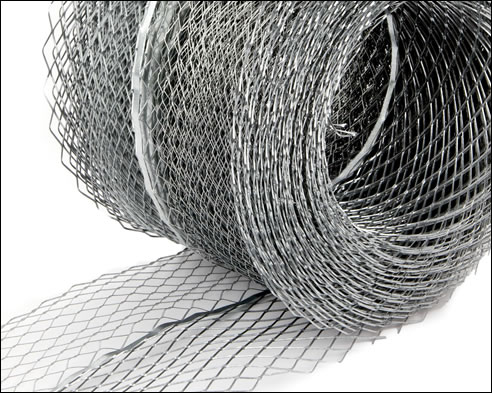

Metallic Coil Mesh

Expanded mesh in coil form, this type of expanded metal is easy to transport and handle, ideal for construction applications as reinforcement mesh in concrete.

Expanded Metal Lath

Expanded metal mesh is commonly used as lathing mesh in construction for plastering and stucco applications, reinforcing wall and ceilings and fireproofing construction.

Expanded Metal Lathing Mesh offers following features:

• Durability: Provides a strong and stable base that can support plaster or stucco layers.
• Adhesion: The diamond-shaped openings create a rough surface that enhances the mechanical bond between the plaster and the substrate.
• Flexibility: Easily conforms to irregular surfaces and corners, ideal for complex architectural shapes.
• Corrosion Resistance: Made from galvanized steel or stainless materials to ensure long-time outdoor or moisture environments.
• Versatility: Available in various thicknesses and mesh sizes to meet specific project requirements.

Expanded Mesh Corner Bead

Expanded metal mesh corner beads ensures strong, clean, and long-lasting corner finishes in plaster and stucco applications.

EXPORT TYPES

Expanded Metal Mesh

Galvanized diamond pattern expanded metal, flattened
Specification: Sheet 1 mm thick, LWD 13mm, SWD 7.6 mm.

Metallic Coil Mesh - Expanded Mesh Strip in Coil

Galvanised expanded coil mesh, in 100mm x 15m length, 150mm coil wdith x 30m length.
Opening: Diamond
For plastering back lathing

Aluminum Expanded Metal

Expanded Metal
Specifications:
Free from creases, tears.
Pattern: Expanded from sheet with diamond shaped opening
Flattening
Original sheet metal thickness: 0.15mm to 0.20mm
Long way distance(LWD) ( diamond pitch): 2.0mm to 3.2mm
Short way distance(SWD) (diamond pitch)
Strand width: 0.2mm to 0.25mm
Roll width: 63.5cm

Galvanized Expanded Metal Lath for Plaster -Supply to Australia

Material: Sheet metal, black steel expanded
Sheet width 1220xLength 2440mm x thickness 3mm
Diamond type mesh
Opening: 25x12mm

Expanded Mesh AISI 304

Expanded mesh 4' X 8'
Material: Stainless Steel Grade AISI 304
Mesh size: 5/8''x1/4''
Sheet thickness: 2.00mm
Width: 1219mm
Length: 2438mm

Expanded Metal Mesh AISI 304 0.5mm
Long way diagonal: 10mm
Short way diagonal: 5mm
Strand width 1mm thickness 0.5mm
Sheet size: 1m x 4m

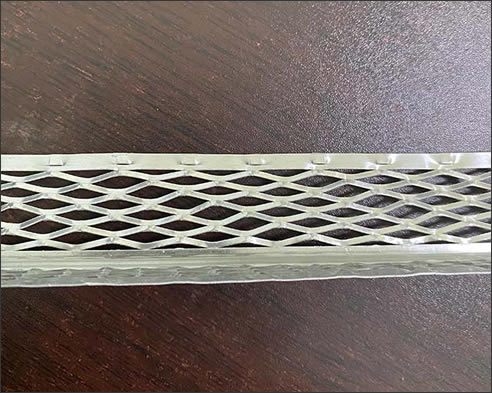

Aluminum Expanded Corner Bead

Supplied to Australia

Material: Aluminium expanded mesh corner bead
Size: 32 x 32mm x 0.45mm thickness
Design: With a solid ribbon on each edge.

Use: Accessories and tools for the external plastering industry
